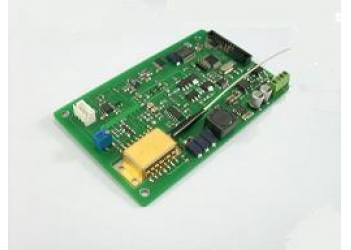

简易激光器驱动

cofiber612

Applications:

Optical fiber component manufacture & test

Laser parameters test system

R & D and lab application.

Compatible with PUMP and DFB butterfly package

Features:

Auto Current Control

Auto Temperature Control

Dynamic monitoring laser test data

LCD display

Specifications:

Parameters	Positive drive	Negative drive
Max bias current(ma)	1000	350
Temperature control range(℃)	15～45	15～45
TEC Temperature Stability(℃)	≤ 0.01	≤ 0.01
Bias current stability（8 hour）	0.5%	0.8%
Wavelength stability  （pm)	10	8
Serial interfaces	(SPI  /I2C  /RS-232) to Host System
Display	LCD display
Power supply	8-40V DC / 2A
Operating temperature (℃)	0 ～ +65
Storage temperature (℃)	-20 ～+70
Dimensions (L×W×H mm)	100×100×70

Order informations:

LD	Type	Dived Laser
	M=Module D=Desk-top	D=DFB P=Pump S=SLED A=SOA

cofiber612
