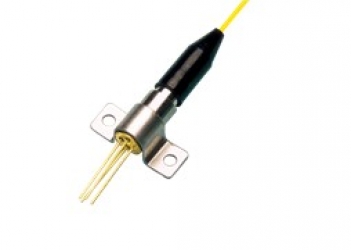

1550nm光电探测器

cofiber612

【Features】

• Active diameter

• Small dark current

• High reliability



【Applications】

• 射频光传输



Absolute maximum ratings

Parameter	Symbol	Condition	Ratings	Unit
Storage temperature	Tstg	-	-40~+100	°C
Operating temperature	Top	-	-40~+85	°C
Reverse voltage	VR	CW	30	V
Soldering time	-	-	10	s
Soldering Temp	-	-	260	°C

Optical & electrical characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test condition
Detection range	λ	1530	1550	1570	nm	-
Dark current	Id	-	1	5	nA	VR=5V，25°C
Quantum efficiency	R	0.80	-	-	A/W	VR=5V，λ=1310 nm
Saturation power	P	10	-	-	dBm	VR=5V，25°C
Rise and Fall time	Tr/Tf	-	0.1	-	ns	RL=50Ω
Reverse Voltage	VR	-	-	15	V	-
Capacitance	Ct	-	-	0.75	pF	VR=5V
Return Loss	RL	-	-	-45
