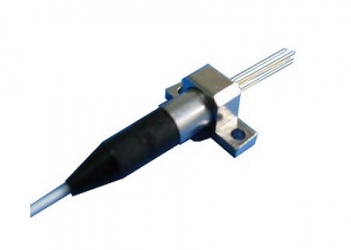

四川梓冠光电生产供应CWDM DFB尾纤激光器

cofiber612

【Features】

• MQW DFB LD

• Low threshold current

• High output power

• Built-in InGaAsP monitor PD

• Wide temperature range operation



可提供波长
1.特殊波长	808nm	850nm	915nm	980nm	1053nm	1053nm
	1064nm	1260nm	1310nm	1550nm	1650nm
2.泵浦激光器	915nm	975nm	980nm	1480nm
3.DWDM激光器	Frequency	Wavelengthλc(nm)	Frequency	Wavelengthλc(nm)	Frequency	Wavelengthλc(nm)
	fc (THz)		fc (THz)		fc (THz)
			194.55	1540.95	192.85	1554.54
	196.2	1527.99	194.5	1541.35	192.8	1554.94
	196.15	1528.38	194.45	1541.75	192.75	1555.34
	196.1	1528.77	194.4	1542.14	192.7	1555.75
	196.05	1529.16	194.35	1542.54	192.65	1556.15
	196	1529.55	194.3	1542.94	192.6	1556.56
	195.95	1529.94	194.25	1543.33	192.55	1556.96
	195.9	1530.33	194.2	1543.73	192.5	1557.36
	195.85	1530.73	194.15	1544.13	192.45	1557.77
	195.8	1531.12	194.1	1544.53	192.4	1558.17
	195.75	1531.51	194.05	1544.92	192.35	1558.58
	195.7	1531.9	194	1545.32	192.3	1558.98
	195.65	1532.29	193.95	1545.72	192.25	1559.39
	195.6	1532.68	193.9	1546.12	192.2	1559.79
	195.55	1533.07	193.85	1546.52	192.15	1560.2
	195.5	1533.47	193.8	1546.92	192.1	1560.61
	195.45	1533.86	193.75	1547.32	192.05	1561.01
	195.4	1534.25	193.7	1547.72	192	1561.42
	195.35	1534.64	193.65	1548.12	191.95	1561.83
	195.3	1535.04	193.6	1548.52	191.9	1562.23
	195.25	1535.43	193.55	1548.92	191.85	1562.64
	195.2	1535.82	193.5	1549.32	191.8	1563.05
	195.15	1536.22	193.45	1549.72	191.75	1563.46
	195.1	1536.61	193.4	1550.12	191.7	1563.86
	195.05	1537	193.35	1550.52	191.65	1564.27
	195	1537.4	193.3	1550.92	191.6	1564.68
	194.95	1537.79	193.25	1551.32	191.55	1565.09
	194.9	1538.19	193.2	1551.72	191.5	1565.5
	194.85	1538.58	193.15	1552.12	191.45	1565.91
	194.8	1538.98	193.1	1552.52	191.4	1566.31
	194.75	1539.37	193.05	1552.93	191.35	1566.72
	194.7	1539.77	193	1553.33	191.3	1567.13
	194.65	1540.16	192.95	1553.73	191.25	1567.54
	194.6	1540.56	192.9	1554.13	191.2	1567.95
	Frequency	Wavelengthλc(nm)	Frequency	Wavelengthλc(nm)	Frequency	Wavelengthλc(nm)
	fc (THz)		fc (THz)		fc (THz)
	191.15	1568.36	189.45	1582.44	187.8	1596.34
	191.1	1568.77	189.4	1582.85	187.75	1596.76
	191.05	1569.18	189.35	1583.27	187.7	1597.19
	191	1569.59	189.3	1583.69	187.65	1597.62
	190.95	1570.01	189.25	1584.11	187.6	1598.04
	190.9	1570.42	189.2	1584.53	187.55	1598.47
	190.85	1570.83	189.15	1584.95	187.5	1598.89
	190.8	1571.24	189.1	1585.37	187.45	1599.32
	190.75	1571.65	189.05	1585.78	187.4	1599.75
	190.7	1572.06	189	1586.2	187.35	1600.17
	190.65	1572.48	188.95	1586.62	187.3	1600.6
	190.6	1572.89	188.9	1587.04	187.25	1601.03
	190.55	1573.3	188.85	1587.46	187.2	1601.46
	190.5	1573.71	188.8	1587.88	187.15	1601.88
	190.45	1574.13	188.75	1588.3	187.1	1602.31
	190.4	1574.54	188.7	1588.73	187.05	1602.74
	190.35	1574.95	188.65	1589.15	187	1603.17
	190.3	1575.37	188.6	1589.57	186.95	1603.6
	190.25	1575.78	188.55	1589.99	186.9	1604.03
	190.2	1576.2	188.5	1590.41	186.85	1604.46
	190.15	1576.61	188.45	1590.83	186.8	1604.89
	190.1	1577.03	188.4	1591.26	186.75	1605.31
	190.05	1577.44	188.35	1591.68	186.7	1605.74
	190	1577.86	188.3	1592.1	186.65	1606.17
	189.95	1578.27	188.25	1592.52	186.6	1606.61
	189.9	1578.69	188.2	1592.95	186.55	1607.04
189.85	1579.1	188.15	1593.37	186.5	1607.47
189.8	1579.52	188.1	1593.79	186.45	1607.9
189.75	1579.93	188.05	1594.22	186.4	1608.33
189.7	1580.35	188	1594.64	186.35	1608.76
189.65	1580.77	187.95	1595.07	186.3	1609.19
189.6	1581.18	187.9	1595.49	186.25	1609.62
189.55	1581.6	187.85	1595.91	186.2	1610.06
189.5	1582.02
4. CWDM激光器 （蝶形/TO）	1270nm	1290nm	1310nm	1330nm	1350nm	1370nm
	1390nm	1410nm	1430nm	1450nm	1470nm	1490nm
	1510nm	1530nm	1550nm	1570nm	1590nm	1610nm

【Applications】

• Audio, Video，Data CWDM Transmission

• Light Source

• CATV Reverse Transmission



cofiber612

各波长激光器，可来电咨询。。。18190010738

cofiber123

四川梓冠光电现提供各种激光器，气体探测激光器，特殊波长激光器等产品。自主生产。咨询电话：18190010738
